Agricontrol Dual / Machinecontrol Dual Aktie !!!! Nieuwe sets

Vorige Artikel 3 van 3
€ 3.750,00 € 3.450,00 (exclusief 21% btw)
Voorraad 3 stuks

AgriControl DUAL Machinebesturing

– Geschikt om 2 machine ontvangers aan te sluiten voor bediening van beide zijden van het bord
– Programeerbare hydrauliek
– Instelbare helderheid van de LED’s
– Selecteerbare nauwkeurigheid (grof, medium, fijn)
– Afstandsbediening RC

Toepasbaar waar horizontaal,enkel of dubbel afschot nodig is

Incl: Controle unit CU Dual, 2x Machineontvanger , afstandsbediening RC, Bekabeling

Eigenschappen Controle Unit:

  • Aluminium behuizing
  • Geschikt voor alle hydraulische systemen
  • Programmeerbare interfase
  • Programmeerbare frequentie en PWM hydraulische outputs
  • Hydraulische uitgang met kortsluit beveiliging en overbelastings beveiliging
  • Handmatig en automatische bediening
  • Afstandsbediening (optioneel)
  • Graaf indicatie Led’s
  • Helderheid LED’s instelbaar
  • Controle van het hydraulisch systeem
  • Nauwkeurigheid selectie van het op niveau zijn
  • Geschikt voor twee machineontvangers
  • Auto power off
  • 12V – 24V DC
  • -15°C to +60°C
  • Afmeting Controle box: 256 x 150 x 63 mm
  • 2,55 KG
  • IP64


Eigenschappen machineontvanger :

  • 8 kanaals
  • 3 nauwkeurigheden (grof, medium, fijn) 12 mm , 5mm , 2mm
  • Ultra felle LED’s voor gebruik in felle zon
  • Minimaal 300 tpm (rotatiesnelheid)
  • Robuuste dubbele bevestigingsklemmen
  • Snelle installatie en simpele bevestiging
  • 360° detectie bereik
  • 450 meter ontvangstbereik
  • 12V – 24V DC
  • -15°C tot +60°C
  • Afmetingen: 162 x 175 x 272
  • Gewicht: 2,3 KG
  • IP65

AgriCONTROL Dual

The AgriCONTROL Dual set is specially designed for land levellers where the left and right side of the blade must be hydraulically controlled. It controls both sides of the blade and is connected to the receivers. This system requires two receivers (one at each side).

Using this control unit makes the use of two control units unnecessary, saves space and makes working more comfortable.

For the control unit there are 2 types of remote control (optional) for the hydraulics available; the model RC which is equipped with push buttons and the RCJ which is equipped with a joystick.

Applied where level, single or dual grade is required.

Control Unit AgriCONTROL Dual

Technical Info

Features and Technical Specifications

  • Aluminum Housing
  • Attachable to all hydraulic systems
  • Connection for 2 laser receivers
  • User friendly programming interface
  • Fully programmable frequency and PWM hydraulic outputs with short-circuit and overload protection
  • Manual or automatic control
  • Remote control (option)
  • Easy to read LED-indication layout with adjustable brightness
  • Hydraulic functioning indication
  • On grade accuracy selection
  • Mounting Bracket
  • Great staying power under frequent and tough use
  • Operating voltage 12-24V DC
  • Operating temperature -15°C to +60°C
  • Dimensions (mm): 250 (W) x 143 (D) x 63 (H) mm
  • Weight: 3kg
  • Waterproof and shock resistant IP64

Laser Receiver AgriCONTROL

Technical Info

Features and Technical Specifications



  • 8 Levels photocells for a better accuracy
  • Three ‘’on grade’’ accuracies  2mm ,5mm , 12mm
  • Constant reception accuracy regardless of operating distance, spot size and rotating laser type
  • Min. operating rotating laser rpm: 300rpm
  • Ultra bright indication with LED’s easy to view even in brightest sunlight
  • Double stable bracket mounting
  • Quick installation and easy mounting
  • Detection range: 360°
  • Operating range: 450m radius (depends on rotating transmitter)
  • Operating voltage: 10-24V DC
  • Operating temperature -15°C to +60°C
  • Dimensions (mm): 162 (W) x 175 (D) x 272 (H) mm
  • Weight: 2,3kg
  • Waterproof and shock resistant IP65



Remote Control RC

Technical Info

Features and Technical Data

  • Aluminum housing
  • Push buttons Up/Down hydraulics
  • Dimensions (mm): 58 (W) x 110 (D) x 24 (H) mm
  • Weight: 0,2kg
  • Waterproof and shock resistant IP64

Remote Control RCJ

Technical Info

Features and Technical Data

  • Aluminum housing
  • Magnet and holes for M5 screws for easy mounting
  • Joystick for ease of use
  • Up/Down hydraulics
  • Auto/Manual selection
  • Dimensions (mm): 68 (W) x 104 (D) x 40 (H) mm
  • Weight: 0,4kg

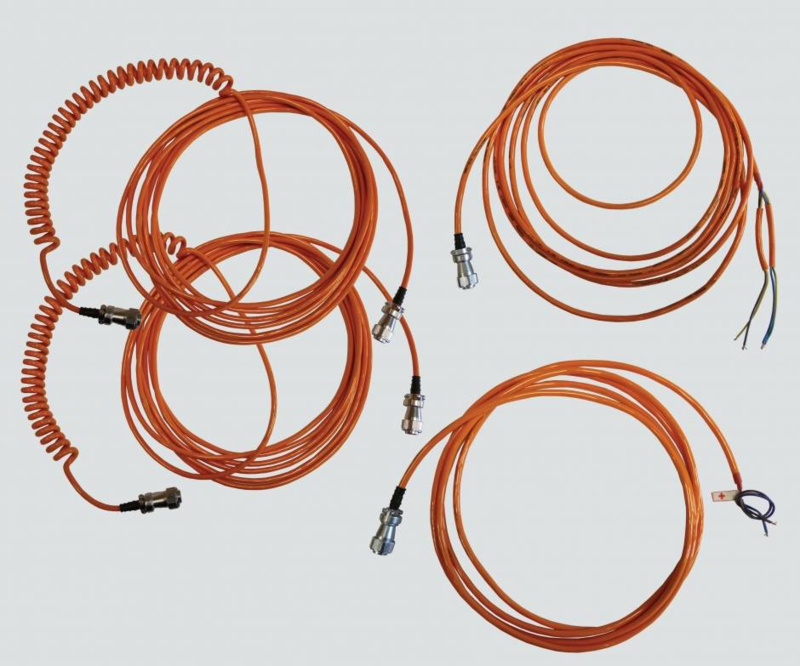

Cable Set Dual

Technical Info

The cable set for the MachineCONTROL Dual system includes:



  • 2x Receiver spiral PUR cable
  • Hydraulics PUR cable
  • Power PUR cable
