MiningCONTROL
The MiningCONTROL system is developed for bucket wheel excavators used in mines. The receiver has an extended reception height for better and more efficient manual operation. The user is informed by the control unit and laser receiver about the level cutting depth and can manually adjust it.Besides the use for bucket wheel excavators this system can be used in other applications as well where automatic hydraulic control is not required

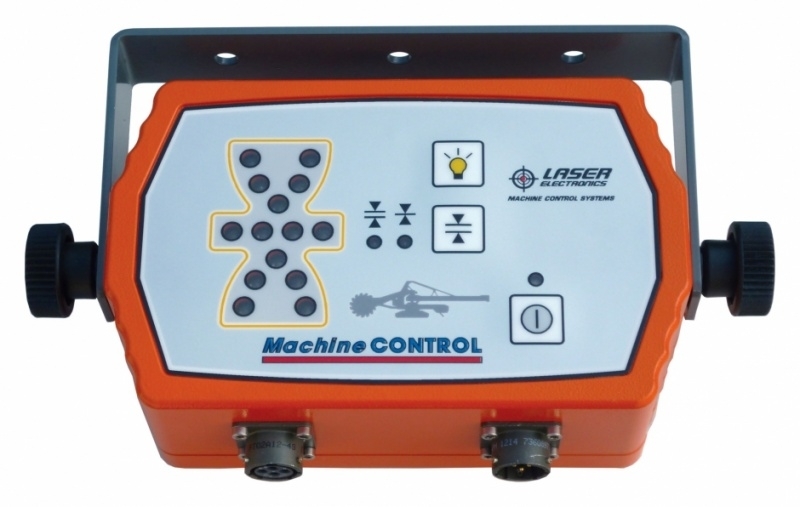

Control Unit MiningCONTROL
Technical Info
Features and Technical Specifications
- Aluminum Housing
- Manual control
- LED grade indication
- Mounting Bracket
- Great staying power under frequent and tough use
- Operating voltage 12-24V DC
- Operating temperature -15°C to +60°C
- Dimensions (mm): 250 (W) x 143 (D) x 63 (H) mm
- Weight: 2kg
- Waterproof and shock resistant IP64

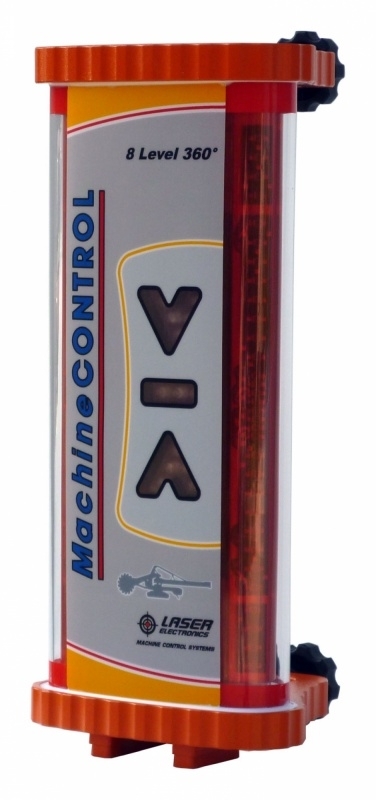

Laser Receiver MiningCONTROL
Technical Info
Features and Technical Specifications
- 8 Levels photocells for a better accuracy
- Three ‘’on grade’’ accuracies
- Constant reception accuracy regardless of operating distance, spot size and rotating laser type
- Min. operating rpm: 300rpm
- Ultra bright indication with LED’s easy to view even in brightest sunlight
- Double stable bracket mounting
- Quick installation and easy mounting
- Detection range: 360°
- Operating range: 450m radius (depends on rotating transmitter)
- Operating voltage: 10-24V DC
- Operating temperature -15°C to +60°C
- Dimensions (mm): 162 (W) x 175 (D) x 372 (H) mm
- Weight: 2,3kg
- Waterproof and shock resistant IP65
