GraderCONTROL

The GraderCONTROL Dual set is specially designed for Machines where the left and right side of the blade must be hydraulically controlled. It controls both sides of the blade and is connected to the receivers. This system requires two receivers (one at each side).

Using this control unit makes the use of two control units unnecessary, saves space and makes working more comfortable.

For the control unit there are 2 types of remote control (optional) for the hydraulics available; the model RC which is equipped with push buttons and the RCJ which is equipped with a joystick.

Applied where level, single or dual grade is required.

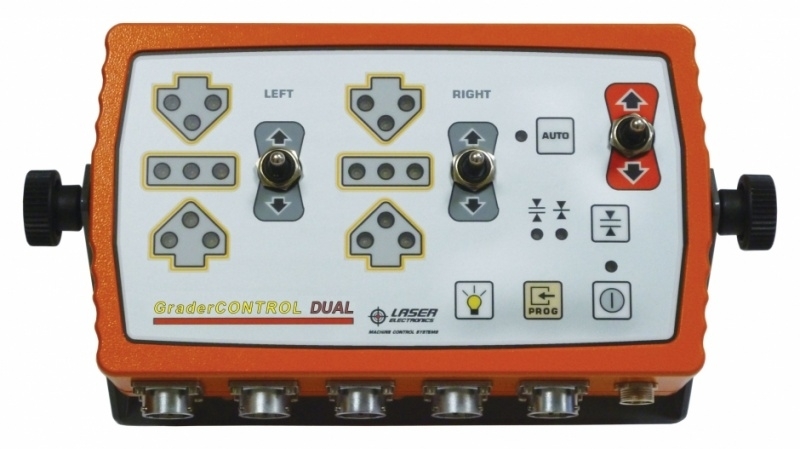

Control Unit GraderCONTROL

Technical Info

Features and Technical Specifications

Aluminum Housing
Attachable to all hydraulic systems
Connection for 2 laser receivers
User friendly programming interface
Fully programmable frequency and PWM hydraulic outputs with short-circuit and overload protection
Manual or automatic control
Remote control (option)
Easy to read LED-indication layout with adjustable brightness
Hydraulic functioning indication
On grade accuracy selection
Auto power off
Mounting Bracket
Great staying power under frequent and tough use
Operating voltage 12-24V DC
Operating temperature -15°C to +60°C
Dimensions (mm): 250 (W) x 143 (D) x 63 (H) mm
Weight: 3kg
Waterproof and shock resistant IP64

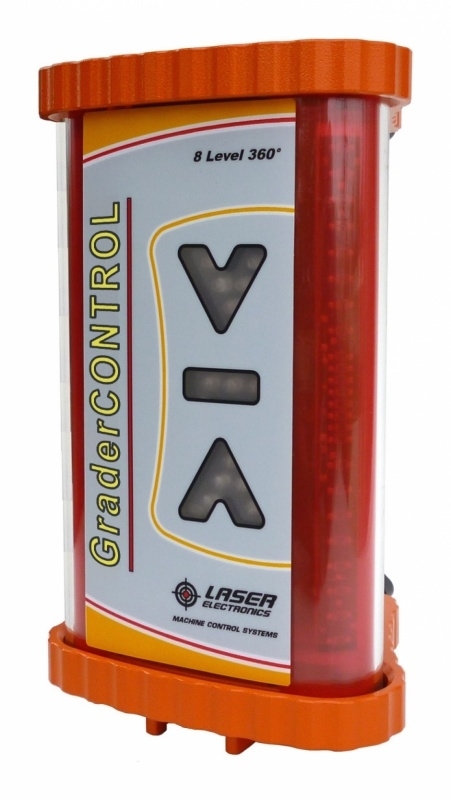

Laser Receiver GraderCONTROL

Technical Info

Features and Technical Specifications

8 Levels photocells for a better accuracy
Three ‘’on grade’’ accuracies
Constant reception accuracy regardless of operating distance, spot size and rotating laser type
Min. operating rotating laser rpm: 300rpm
Ultra bright indication with LED’s easy to view even in brightest sunlight
Double stable bracket mounting
Quick installation and easy mounting
Detection range: 360°
Operating range: 450m radius (depends on rotating transmitter)
Operating voltage: 10-24V DC
Operating temperature -15°C to +60°C
Dimensions (mm): 162 (W) x 175 (D) x 272 (H) mm
Weight: 2,3kg
Waterproof and shock resistant IP65
