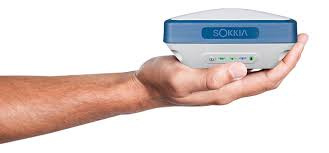

Sokkia GSX 2

GSX2 GNSS Receiver SPECIFICATIONS :

Tracking Capability Number of Channels 226 channels Tracked Signals GPS GLONASS, SBAS, QZSS, Galileo*, and COMPASS* Antenna Integrated Positioning Accuracy Fast Static (L1) H: 3mm + 0.8ppm V: 4mm + 1.0ppm Fast Static (L1 + L2) H: 3mm + 0.5ppm V: 5mm + 0.5ppm Kinematic (L1, L1+L2) H: 10mm + 1.0ppm V: 15mm + 1.0ppm DGPS < 0.4m SBAS < 0.6m RTK (L1 + L2) H: 10mm + 1.0ppm V: 15mm + 1.0ppm Autonomous < 1.2m Maximum Data Rate 20Hz Data Management Memory 4GB internal memory (Firmware limit of 2GB of static data) Real Time Data Output TPS; RTCM SC104 v 2.x, 3.x; CMR/CMR+ ASCII Output NMEA 0183 v 2.x and 3.0 Communication Ports Bluetooth, Serial, USB (Client) Wireless Communication Bluetooth Modem V.1.1; Class 1; 115,200bps RTK Communication Over 300m with up to 3 simultaneous rovers General Dust/Water Protection IP67 (IEC 60529:2001) Shock 6.56ft. (2m) pole drop Operating Temperature -20°C to +65°C with internal batteries; -40°C to +65°C with external power; Display MINTER Size W6 x D6 x H1.5in. (W150 x D150 x H64mm) Weight Approx. 1.87lb. (850g) Power supply Battery Internal Operating Time Up to 20 hours External Power Connector Yes * Galileo and COMPASS support will be incorporated into GSX2 .
